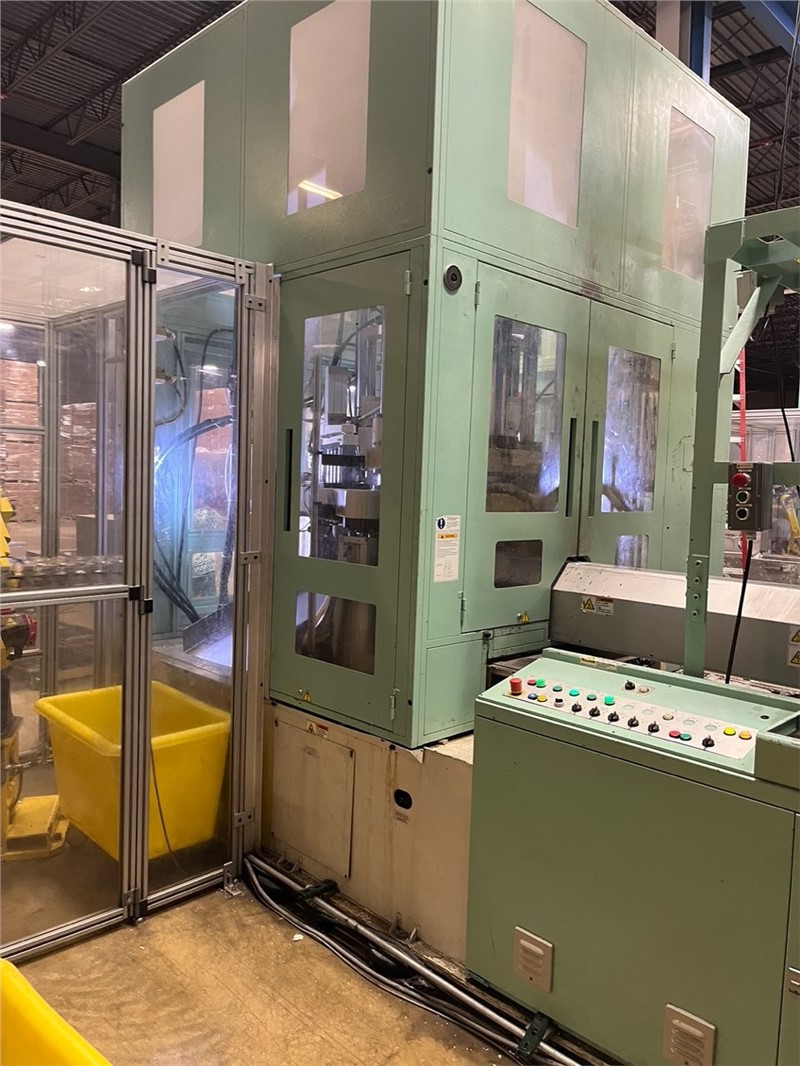

Used Aoki Injection Stretch Blow Molding Machine, Model SBIII-350LL-100, New in 2013, Screw diameter- 68 mm

-Injection Capacity- 510.3 cubic centimeters per shot
-Injection mold clamp force- 983.4 kN
-Blow mold clamp force- 388.2 kN
-Product size capabilities:
-Number of products                2     4    6     8    10
-Mouth diameter(mm)            120  90  60  37   26
-Body diameter (mm)             180  40  90  70   55
-Height (mm)                          335  335 335 265 250
-Approximate capacity (ml)  6000 3000 1500 900 350
-Machine dimensions (meters)- 5.25 L x 2.55 width x 3.50 height
-Approximate machine weight- (kilograms)- 14,000
-Electrical specifications- 460 volts/ 3 phase/ 60 hertz

Offer includes the following items

  • Resin dryer
  • Resin hopper
  • Gardner Denver Low Pressure Air Compressor with Air Dryer and Air Reservoir- variable speed
  • Hycomp high pressure air compressor with Air Dryer and Air Reservoir
  • Fanuc Part- Take Out System
  • Frigel Water Cooled Chiller
  • Table top conveyor

*2 UNITS AVAILABLE - 2013 & 2010 MODELS
