Product Features

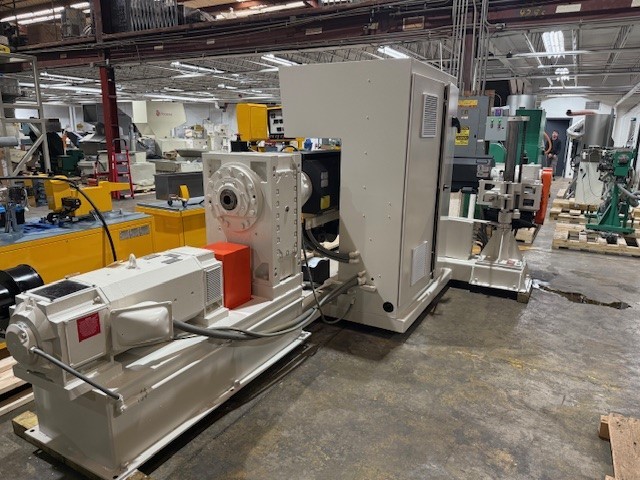

  • Used 3.5" Merritt Davis Model 3.5 Extruder with 1.5" Merritt Pedestal Extruder
  • System Consists Of The Following Pieces:

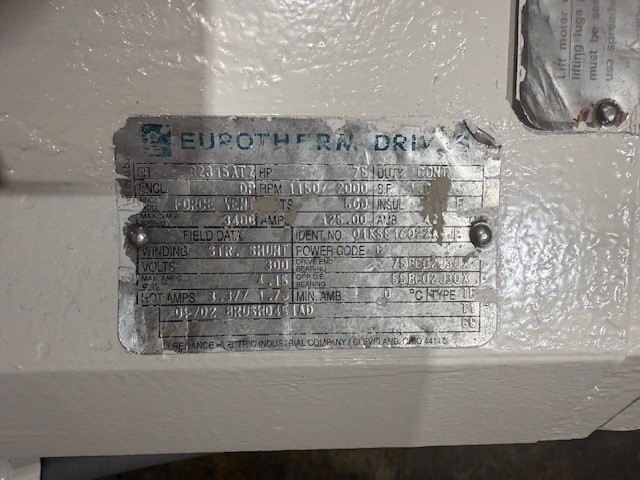

  • 3.5" Merritt Davis Extruder, 24:1 L/D Ratio, Air-Cooled Barrel, 5 Barrel Zones 13.9:1 Gearbox Ratio, Direct Driven, 75 HP Eurotherm DC Motor(2000/1150 RPM) With Reliance FlexPak DC Drive, 130 RPM Screw Speed,  5.5" x 5" Rectangular Feed Throat, Clamp & Screw.
  • 1.5" Merritt Davis Pedestal Extruder, 24: 1 L/D Ratio, Air-Cooled Barrel, 3 Barrel Zones, 14.25:1 Gearbox Ratio, Belt Drive, 10 HP Reliance AC Motor(1765 RPM) With Reliance GV3000/SE AC Inverter Drive, 125 RPM Screw Speed, 1.5" Round Feed Throat, Clamp & Screw
  • Control Panel With Both Extruder Drives, Solid State Relays, Amp Gauge And RPM Gauge For Each Machine, 12 Downstream Zones, 400 Amp Main Breaker.
  • 42" Centerline, Entire System Mounted On Unitized Base
  • Approximate Dimensions: 182" L x 80" W x 80" H

3.5" Merritt Davis Co-Extrusion System With 1.5" Co-Extruder

Call Us
(877) 887-9408
International
(312) 878-3809
Brand Merritt
Model 3.5
Item 19983J
