Click to enlarge (43 Total Photos)

Product Features

  • "Used 80"" Wide Davis Sheet Line With 5""(130MM) 34:1 Extruder, New In 2009
  • Maguire WSB-940T Gravimetric Blender
  • 5 inch (130 mm), 34:1 L/D, Thermatic III, 13.85:1 Gearbox Ratio, Model 130MM45T, Water Cooled, 8 Barrel Zones, Vented Barrel, 300 HP (222 KW) AC Drive System, Yaskawa Drive, S.O. 36917
  • Davis-Standard TPC Control Panel, Pre-wired and Pre-mounted Control and Drive Cabinets, HMI Interface
  • Xaloy Dual Bolt DBC-379 Hydraulic Screen Changer, Support Stand, Hydraulic Power Unit
  • Polymer Melt Pump System, Static Mixer in Downstream Adapter, 20 HP AC Motor
  • 76 inches (1930 mm) Wide Sheet Die, .10 Die Gap, 0-2.54MM Range, External Side Mount Deckling, Heavy Duty Die Cart with Work Platform, 76"" Ultraflex, S/N 09-28158
  • 80"" Wide Sheet Line, 20"" Diameter Rolls, Individual Roll Drive System with Planetary Gear Boxes, Vertical Downstack Orientation, Hydraulic Roll Pressure,
  • Closed Loop Colling System With (3) 18KW) Heaters, PLC Controlled,
  • 25"" Long Conveyor, First 10 Idlers Are Water Cooled
  • 80"" Wide X 8"" Diameter Rubber Pull Rolls, Pneumatic Pressure

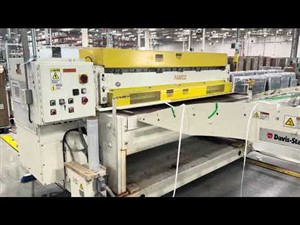

  • 72"" Wide Famco Shear, 1/2 Inch ABS, S/N NOS-01106826
  • Previously Running PS (Polystyrene) Crystal
  • Additional Specifications And Photos Available, Contact Your Arlington Salesperson.
  • Currently Installed, Located In Ciudad Juarez, Mexico"
Add To Quote

80" Wide Davis Sheet Line With 5"(130MM) 34:1 Extruder, New In 2009

Call Us
(877) 887-9408
International
(312) 878-3809
Sell Your Used
Machinery
Brand Davis Stan
Model XP EXPRESS
Item 20796J
