Product Features

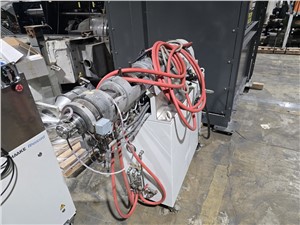

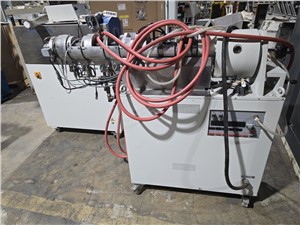

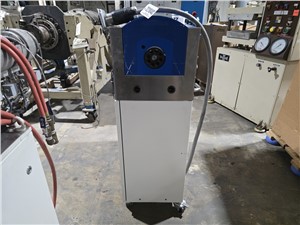

Haake (ThermoFisher, Thermo Electron) PTW25/36 Twin Screw Extruder
Parallel, segmented, corotating twin screw extruder for compounding, blending polymers
Screw – 25 mm diameter, L/D ratio 36.1
Output – 15 kg/hr
Melt temperature – 5 channels; Melt pressure – 7 channels
Temperature Control – Cooling feed zone, 5 to 6 heating/cooling zones, die and melt pump zones
Extruder mounted on movable stand
Set of screws
Pressure transducer
Horizontal multistrand die (3 nozzles)
Sheet and ribbon die (1”)
Metering feeder – powder = 7.5 kg/hr max; pellets = 14.0 kg/hr
Funnel type hopper

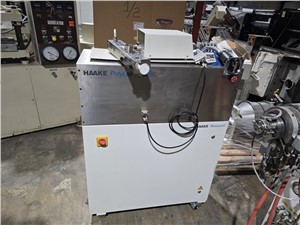

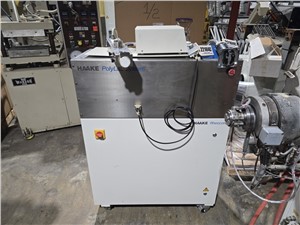

Haake (ThermoFisher, Thermo Electron) Polylab RC300p with Personal Computer, Software and Printer
Drive motor and measuring system – precision digital servo drive with 10 HP motor and max. speed of 200 l/min
Drive uses 3x230 V, 50/60 hz, 32 A max current
Dell Dimension XPS personal minitower computer
Standard interfaces for auxiliary instruments
Hand held remote for instrument control
Sensor autodetect system

Add To Quote

25mm Haake (ThermoFisher, Thermo Electron) PTW25/36 Twin Screw Extruder

Name: 25mm Haake (ThermoFisher, Thermo Electron) PTW25/36 Twin Screw Extruder
Brand: Instron
SKU: 22104C
Price: 25000.00 USD
Availability: InStock
